Tutorial Series: Exposing a Service with Aegis
| # | Tutorial | Description |
|---|---|---|
| 1 | Local HTTPS with a whoami service | Configure the gateway manually through the UI |
| 2 | Configure the Gateway with Owl AI | Let Owl AI do the configuration from a single prompt |
| 3 | Understanding the Dashboard ← you are here | Read live traffic data and use Owl to analyse request patterns |
Part 3 — Understanding the Dashboard
Prerequisite: Complete Part 1 or Part 2 so you have a live service sending traffic through Aegis.
This tutorial walks through every section of the Aegis dashboard using real traffic from whoami.local. You'll generate requests, watch them flow through the dashboard, and ask Owl to analyse the IP pattern.
Step 1 — Generate some traffic
Open https://whoami.local in your browser and refresh the page several times. Each refresh is one HTTP request flowing through Envoy into Aegis.

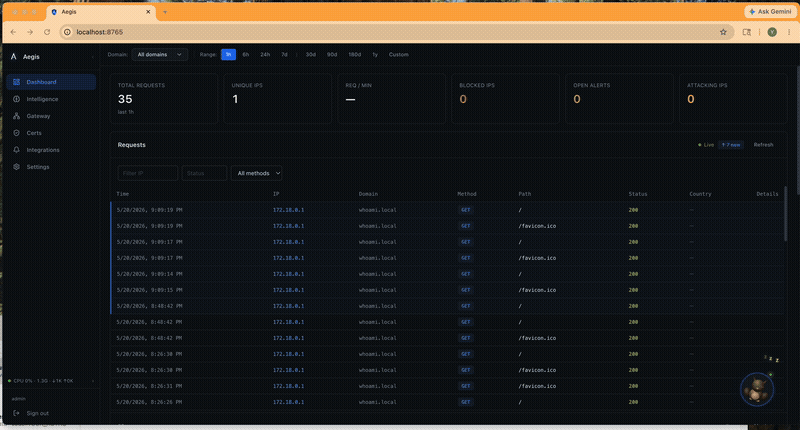

Step 2 — Live Request Feed
The top panel shows every request as it arrives — method, path, status code, response time, and source IP. Requests from your browser appear within a second of hitting Envoy.
What to look for:
GET /→200from your browser IP — confirms the whoami service is healthy- Response time in the low milliseconds — Envoy adds almost zero overhead
- The source IP shown is your machine's IP (or Docker bridge if testing locally)
Step 3 — Top IPs leaderboard
The leaderboard ranks IPs by total request count. After a few refreshes your IP will appear at the top.
Click your IP to open the IP Intelligence panel — Aegis automatically looks up geolocation, ASN, and checks AbuseIPDB. For your own IP it should show:
- Country and ISP matching your network
- Reputation score near 0 (clean)
- Request history from this session
Step 4 — Traffic breakdown panels
| Panel | What it shows |
|---|---|
| Status codes | 2xx/3xx/4xx/5xx split — all green means no errors |
| HTTP methods | GET/POST/etc. distribution |
| Top paths | Most-requested URLs — useful for spotting scanners hitting /admin, /.env, etc. |
| Country map | Geographic origin of requests — your country should light up |
| Device types | Browser, bot, API client classification based on User-Agent |
Step 5 — Ask Owl to analyse the pattern
Open Owl (🦉 bottom-right) and ask:
What does the recent traffic from my IP look like? Is there anything suspicious?
Owl queries the live traffic data, checks the IP intelligence profile, and gives a verdict. For normal browser traffic it should respond with something like:
"The traffic from [your IP] looks like normal browser activity — consistent GET requests to
/, standard browser User-Agent, low request rate, clean reputation score. No action needed."
This is exactly what threat analysis looks like for legitimate traffic — Owl confirms it's safe so you know what a clean profile looks like before comparing it to actual attack traffic.
What you've seen
| Dashboard section | Meaning |
|---|---|
| Live feed | Real-time visibility into every request Envoy handles |
| Top IPs | Who is hitting your gateway and how often |
| IP Intelligence | Automatic reputation and geolocation for any source IP |
| Breakdown panels | Traffic health at a glance — status codes, paths, countries |
| Owl analysis | AI verdict on any IP pattern — safe, suspicious, or block |
Next
There is no next tutorial in this series yet — but you now have a working HTTPS service, an AI-configured gateway, and a live understanding of your traffic dashboard.
Explore from here:
- Try sending malformed requests and watch Owl's threat score rise
- Set up AI patrol sweeps to classify traffic automatically in the background
- Configure notifications to get alerted when Aegis blocks an IP
